How to Test a Purge Valve

How to Test a Purge Valve

How to Test a Purge Valve. As a car owner, it’s essential to ensure that your vehicle is running smoothly and efficiently. One critical component of your car’s emission system is the purge valve. The purge valve plays a crucial role in regulating the fuel vapor emissions from your car’s fuel tank.

If your car’s purge valve is not functioning correctly, it can cause several problems, including decreased fuel efficiency, rough idle, and check engine lights. To avoid these issues, it’s important to test your car’s purge valve regularly. In this guide, we’ll take you through the step-by-step process of testing a purge valve to help you keep your vehicle running smoothly.

What is a Purge Valve?

Before we dive into the testing process, let’s first understand what a purge valve is and what it does. A purge valve is an essential component of your car’s emission control system that regulates the flow of fuel vapor from the fuel tank to the engine.

The purge valve is responsible for opening and closing a passage between the fuel tank and the engine’s intake manifold. This passage allows the fuel vapors to enter the engine, where they are burned in the combustion chamber. This process reduces harmful emissions that could be released into the environment.

Signs of a Faulty Purge Valve

Testing a purge valve is necessary if you suspect that your car’s emission control system is malfunctioning. Some of the signs of a faulty purge valve include:

  • Check engine light is on
  • Rough idle
  • Difficulty starting the car
  • Decreased fuel efficiency
  • Strong fuel odor
  • Stalling or hesitation during acceleration

If you notice any of these signs, it’s essential to test your car’s purge valve to identify any issues.

How to Test a Purge Valve

Testing a purge valve is a relatively simple process that you can perform yourself. Here’s a step-by-step guide on how to test a purge valve:

Step 1: Park Your Car
Before you begin testing the purge valve, park your car in a safe and flat location. Make sure that the engine is turned off and that the parking brake is engaged.

Step 2: Locate the Purge Valve
The purge valve is typically located near the engine’s intake manifold. You can refer to your car’s owner manual to locate the purge valve’s exact location.

Step 3: Disconnect the Purge Valve
To test the purge valve, you need to disconnect it from the vehicle’s wiring harness. Use a flathead screwdriver or pliers to remove the wiring harness from the purge valve.

Step 4: Check the Purge Valve for Continuity
Using a multimeter, check the purge valve for continuity. Set the multimeter to measure resistance and touch the probes to the valve’s terminals. A working purge valve should show a resistance of around 30 ohms.

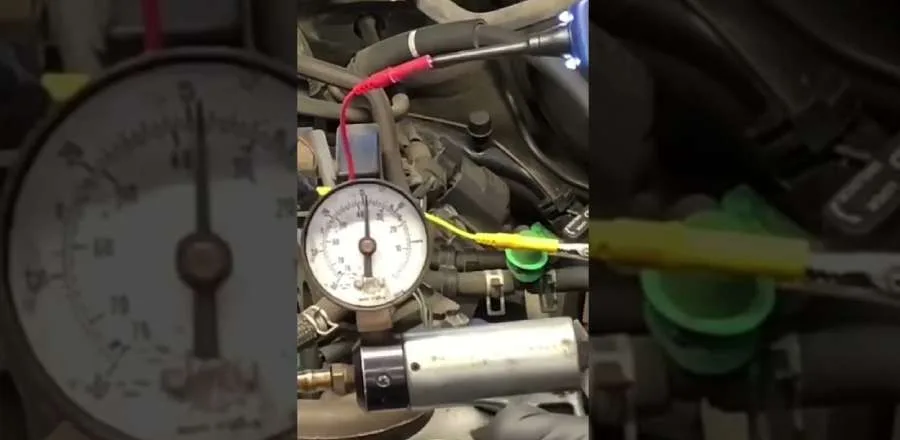

Step 5: Check the Purge Valve for Vacuum
To check the purge valve’s vacuum, connect a hand-held vacuum pump to the valve’s intake side. Apply vacuum to the valve and observe the vacuum gauge. The vacuum should hold steady at around 20 inches of mercury.

Step 6: Reconnect the Purge Valve
If the purge valve passes both continuity and vacuum tests, you can reconnect the wiring harness to the valve. Make sure that the connection is secure.

Step 7: Clear the Error Code
If you found that the purge valve is working correctly, you need to clear the error code from your car’s computer system. You can do this by using an OBD-II scanner or by disconnecting the car’s battery for a few minutes. Once the error code is cleared, you can start your car and see if the purge valve issue has been resolved.


Can a faulty purge valve cause engine damage?
Yes, a faulty purge valve can cause engine damage if it causes too much fuel vapor to enter the engine. This can result in the engine running too rich and potentially damaging the spark plugs, oxygen sensors, or catalytic converter.

Can I clean a purge valve instead of replacing it?
It’s possible to clean a purge valve, but it’s not always recommended. If the valve is clogged or damaged, cleaning it may not solve the issue, and you may need to replace it.

What other components should I check if I suspect an emission system issue?
If you suspect an emission system issue, you should also check the oxygen sensor, catalytic converter, and fuel injectors.

Testing a purge valve is a crucial step in maintaining your car’s emission control system. By following the step-by-step guide outlined above, you can easily diagnose any issues with your purge valve and ensure that your car is running efficiently. If you notice any signs of a faulty purge valve, make sure to test it as soon as possible to avoid potential engine damage and costly repairs. With regular maintenance and testing, you can keep your car running smoothly for years to come
